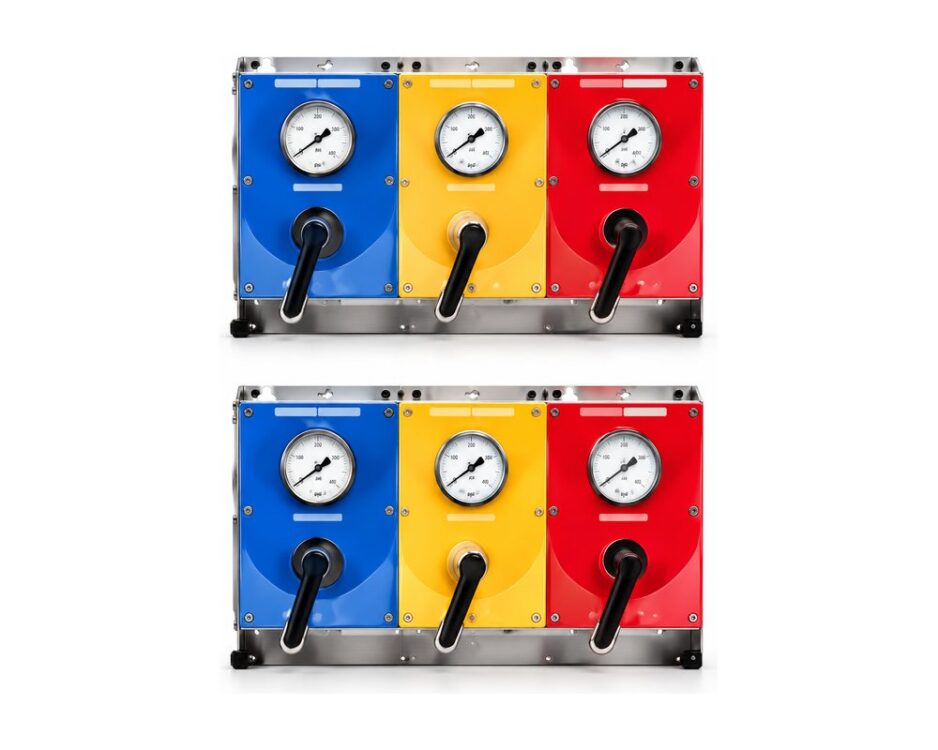

Gas Distribution Panel
Colour-coded distribution panel that takes gas from a cylinder or manifold and feeds multiple instrument lines at controlled pressure.
Overview
A distribution panel provides a single, clearly identified control point between the gas source and the instruments it feeds. Isolation and pressure control sit together on one panel face, which keeps line changeovers quick and makes it obvious which gas is being handled.
Key features
- Individual isolation valve and pressure indication per outlet
- Colour-coded panel faces for unambiguous gas identification
- Compact wall-mounted format for instrument rooms and gas banks
- Configurable outlet count to match the instruments served

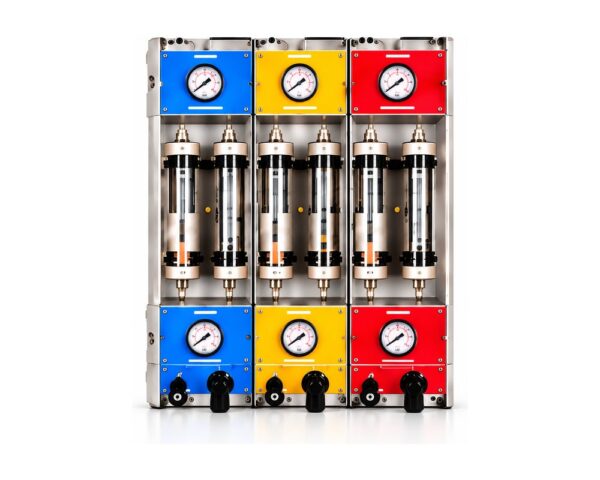

- Builds into a complete system with purification panels and regulators
Applications
- Distributing carrier and support gases to multiple analytical instruments
- Central gas banks feeding laboratory instrument rooms
- Consolidating scattered cylinder-mounted regulators into one control point
Specification & options
Options & variants
Outlet count, gas service, pressure range and fitting type are specified per project. Send us your instrument list and we will confirm a suitable configuration.
Category
Gas Handling & Purification
Availability
Quoted on enquiry. Send your requirement and we
will confirm specification, availability and price.
Need exact specifications? Detailed specifications depend on the configuration and the instrument this item will be used with. Tell us what you are running and we will confirm the correct variant before quoting.
