Laboratory Gas Systems | Ahmedabad

Gas pipelines, regulators and filtration—built around your laboratory.

Symtek Scientific supplies, installs and commissions stainless-steel gas pipelines, gas panels, regulators, filters, flow-control assemblies and point-of-use connections for analytical and industrial facilities.

  • H₂ / Hydrogen
  • He / Helium
  • Zero Air
  • N₂ / Nitrogen
Discuss Your Gas System Explore Gas Handling
Representative installed four-line system Configured by project

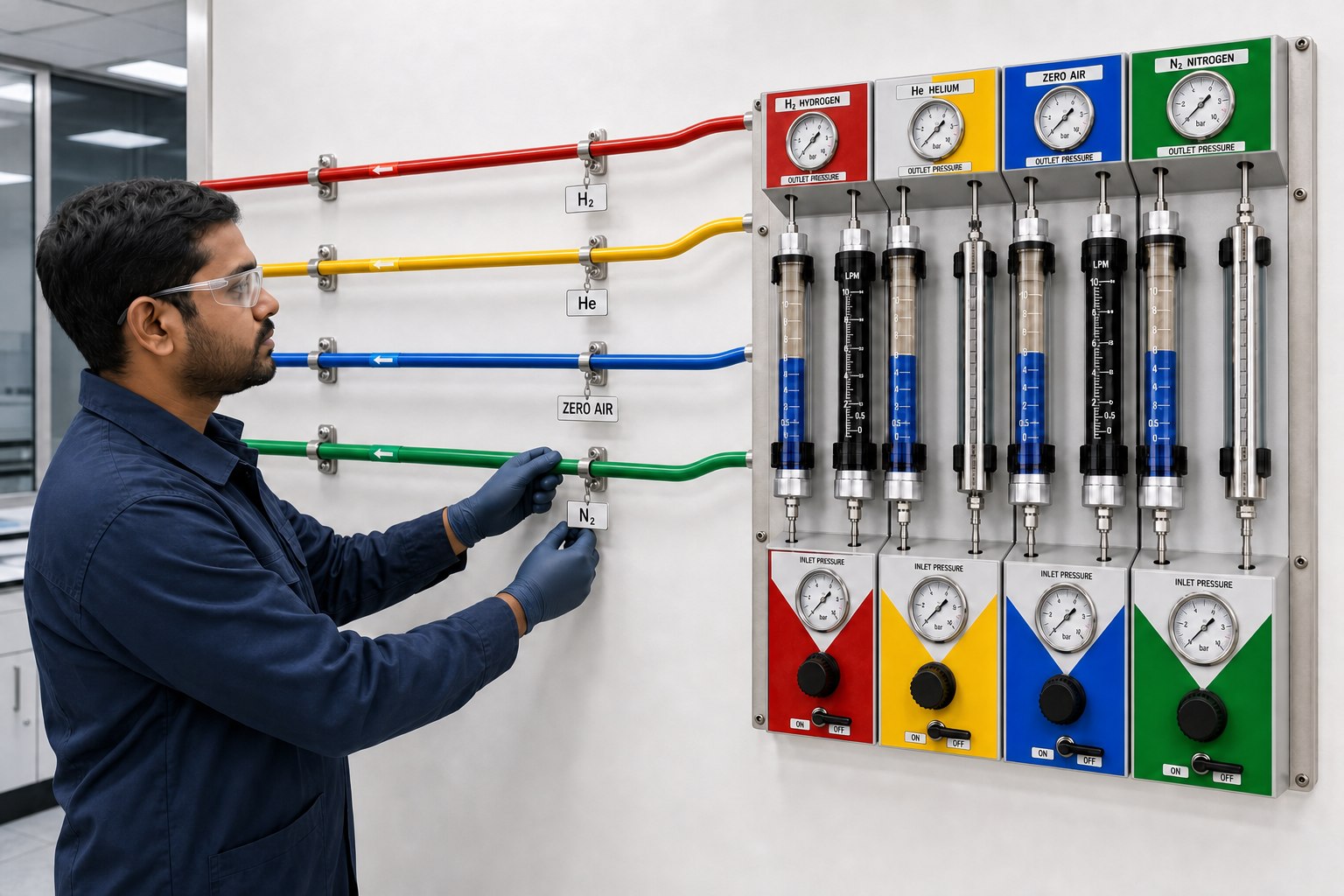

Technician checking four pipelines identified as red H2, yellow He, blue Zero Air and green N2 beside a matching four-line laboratory gas panel
Regulators, panel and pipeline installed as one system Final component selection and identification are configured for the gas duty and site.
Pipeline InstallationClean routing, fittings, supports and use points.
Regulators & PanelsPressure control, isolation and distribution.
Filters & PurifiersConditioning selected for gas and application.
Checks & IdentificationProject-defined verification, labels and records.
Primary Gas Capabilities

The hardware and installation behind dependable gas delivery.

Every project is defined around the gas, required purity, available inlet conditions, target pressure and flow, route, service access and the instrument manufacturer’s utility requirements.

Illustrative Equipment Path Each gas service keeps its own control, panel channel and identified pipeline.

The paths illustrate a representative project-configured arrangement. Colors are illustrative; approved labels, drawings and site requirements establish gas identity and the final installation.

  • H₂ / Hydrogen
  • He / Helium
  • Zero Air
  • N₂ / Nitrogen
Four-service laboratory gas control and pipeline schematic An illustrative project-configured path from an inlet through four individual regulators and gauges, a four-channel panel ordered hydrogen, helium, Zero Air and nitrogen, four identified stainless-steel pipelines and a generic instrument point. The panel has four upper gauges, eight vertical filter or flow assemblies and four lower gauge and control areas. INLET INSTRUMENT DEFINED POINT OF USE ILLUSTRATIVE, PROJECT-CONFIGURED ARRANGEMENT • GAS IDENTITY CONFIRMED BY LABELS AND APPROVED DOCUMENTATION
  1. 01Inlet
  2. 02Pressure regulationControl and indication
  3. 03Filter / flow panelProject-selected assemblies
  4. 04Identified SS pipelineSupported separate routes
  5. 05Instrument pointDefined final connection

Stainless-steel gas pipelines

Stainless-steel tubing routes with suitable fittings, controlled bends, supports, valves, gas labels and flow arrows, carried through to each point of use.

Gas regulators, gauges & valves

Primary or point-of-use pressure control and isolation selected for compatibility, available inlet conditions, delivery range, flow duty and stability.

Gas filters, purifiers & Zero Air lines

Filtration and purification stages, including Zero Air service, arranged around the contamination risk, analytical need and maintenance access.

Gas panels & points of use

Single- or multi-line panels combining regulation, gauges, filters, flow control and isolation, with a defined final connection for each instrument.

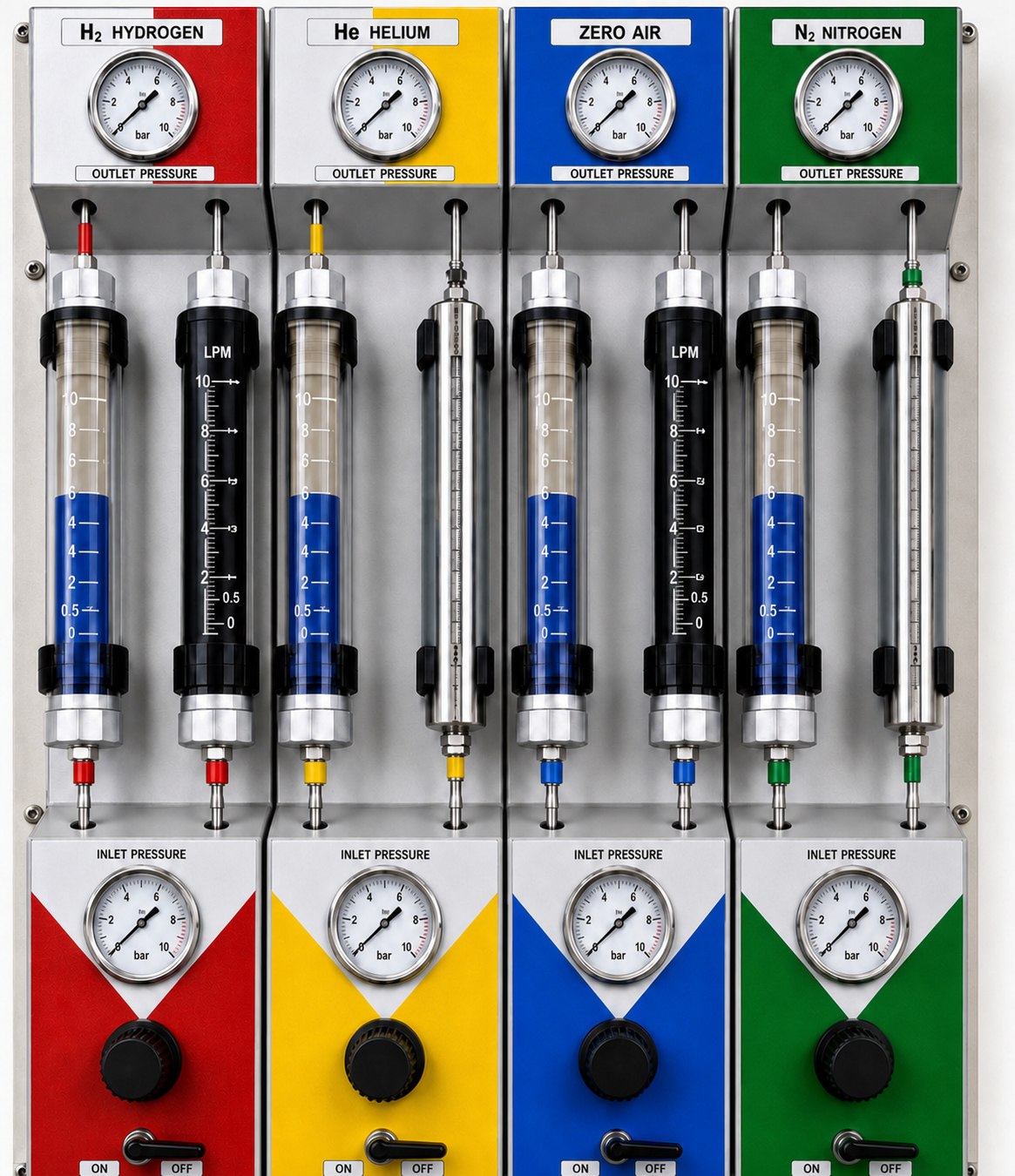

Front view of a four-line panel with red H2, yellow He, blue Zero Air and green N2 identification collars, gauges, controls and eight vertical assemblies
Representative Four-Line Panel

The shown H₂, He, Zero Air and N₂ arrangement reflects the product style Symtek can integrate with the installed pipeline. The final circuit count and component specification are established for the actual application.

  • Clearly separated gas circuitsIndividual labels, gauges, regulation and isolation make each service easier to operate and trace.
  • Filtration and flow controlPanel-mounted assemblies can be selected and arranged around the required gas quality and instrument duty.
  • Accessible for inspection and serviceGauge visibility, component access and replacement needs are considered in the panel layout.
  • H₂ / Hydrogen
  • He / Helium
  • Zero Air
  • N₂ / Nitrogen

The colors shown identify this representative configuration; they are not presented as a universal gas-color standard. Approved labels, drawings and site requirements govern the final installation, and gas identity must never be inferred from color alone.

View gas-handling capabilities

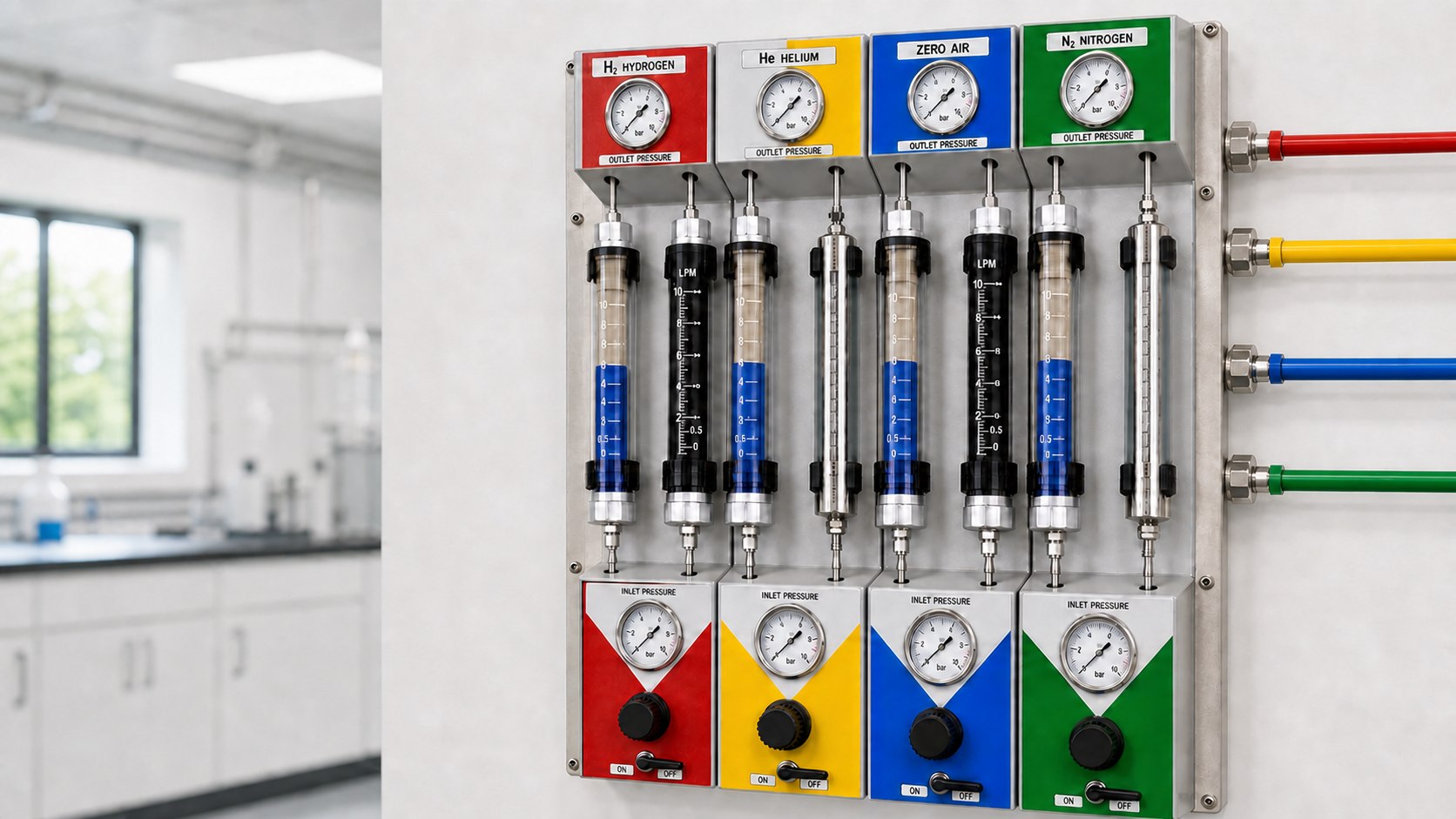

Four-line laboratory gas panel with separate red H2, yellow He, blue Zero Air and green N2 outlet pipelines
Representative four-line panel with illustrated gas-color identification. Final routing, components, labels and checks are project-specific.
Installation Path

From inlet to each point of use.

Symtek coordinates gas regulation, panel-mounted filtration and flow control, stainless-steel pipeline routing and instrument-side connections as one installation.

  1. 01Gas & site reviewGas list, inlet conditions, equipment utilities, routes, access and site constraints.
  2. 02Layout & component selectionPanel arrangement, tubing, regulators, filters, valves and points of use.
  3. 03Panel & pipeline installationMounted assemblies, routed tubing, supports, fittings and instrument-side connections.
  4. 04Identification & verificationGas labels, flow arrows and project-defined leak, pressure, purge or functional checks.
  5. 05Set-up & handoverOperating set-points, system context, records and next maintenance actions.
More from Symtek

Wider scientific support when your project needs it.

Gas handling is the focus here, while Symtek’s established instrument, consumable and lifecycle-support capabilities remain available for broader laboratory requirements.

Scientific instruments

Analytical and materials-characterization solutions selected around the application.

Explore solutions →

Consumables & accessories

Routine laboratory items, instrument accessories and application-specific requirements.

View consumables →

Installation, maintenance & training

Technical services that support equipment installation, uptime and user confidence.

View services →
Plan Your Gas System

Planning a gas panel, new pipeline or gas-line upgrade?

Share the gas services, available inlet conditions, required outlet pressure and flow, points of use, route drawing or site photos, and instrument utility details. We’ll start with the right technical questions.

Request a Site Discussion Call +91 91733 85030
